– Download firmware – HAM edition

To download a new firmware version click on the blue collored link. Instructions about how to upgrade the firwware are availabale here 1216H Info and here  Start up 1216H .

Note!: Always unpack the zip-file before starting the upgrade!
Note also !: if you have a firmware of v 1.8 or older you must install this this file .

From v 4.0 is the firmware devided into two versions: “HAM” and “HOME”. The HAM-version has the functionallity needed to control antennas, rotatators etc. The HOME-version is used for home automations. The version tree 3.x will be still be shown to make it posssible to follow added functions and bugfixes etc.

>>>Important ! Do not install a HAM firmware if you intend to use the Webswitch for home automation!<<<

Revision logg:

Version 4.94 HAM-edition:

Important > BETA

  • Dynamic DNS settings > Dynamic DNS status OK

Version 4.93 HAM-edition:

Important > BETA

  •  Serial settings > Remote serial (RFC2217/Raw) > Analogue / Array Switch

Version 4.91 HAM-edition:

Important > BETA

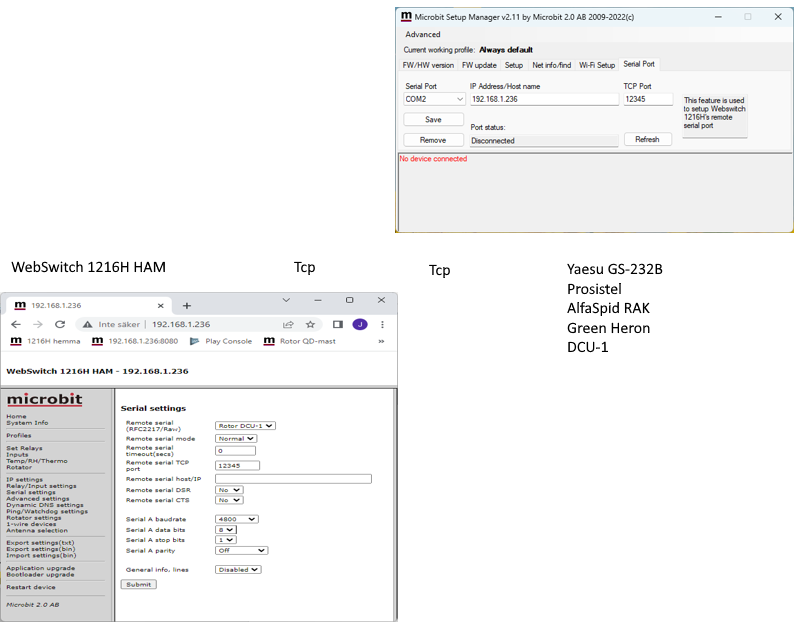

  • Serial settings” > “Remote serial (RFC2217/Raw)” > “Rotor DCU-1 (See attachment)

Version 4.90 HAM-edition:

Important > BETA

  •  IP settings > SNTP server(requires Dns server)
    Advanced settings > Time zone
    DST start, Sunday
    DST start, month
    DST start, hour
    DST end, Sunday
    DST end, month
    DST end, hour
  • New version  of the IP-stack lwip-2.1.3 (lwip-2.1.2)

Version 4.88 HAM-edition:


Important > BETA

  • “System info” > “Ext. IP xx.xx.xx.xx”
  • “System info” > “Webbserver xx”
  • “Serial settings” > “Remote serial (RFC2217/Raw)” > “Rotor DCU-1″
  • WebSwitch 1216H HAM > “Temp/set relays/humidity/inputs”
  • Rotator (etc)
  • WebSwitch 1216H HAM > “Webswitch 1216H HAM/Antenna Switch 1289/Antenna Switch 1269B”
  • WebSwitch 1216H HAM > “Temp” > red, gren, blue (1,0,-1)


Version 4.59 HAM-edition:

  • The graphics are now integrated in the fw an Internet connection is no longer needed.
  • New featuere for det Remote serial server  function= raw server.
  • The  baudrate settings for the remote server no support 115200 to support  LP-100A for example.
  • Stop Button for Alfaspid and Prosistel rotators.
  • New ip-stack lwip-2.1.2
  • Pulsfe function added for the relays
  • Increased tolerance against Internet robots.


Version 4.27 HAM-edition:

  • Added support for new Flash memory no features added.

Important! If you have a Webswitch with bootloader v 1.13 or later you can NOT install  versions before v 4.27. if you do it you will brick your Webswitch and it need to be sent to us for repair.

Version 4.23 HAM-edition:

  • Added support for hw 4.
  • DynDNS-client status indications is improved.
  • Better support for visually disbled users.

Version 4.20 HAM-edition:

  • DDNS improvements.
  • Added function “Toggle relay + restart” i nPing/Watchdog .
  • Support for hw 4.
  • Added “Unit ID” at antenna and relay pages.
  • Bugfixes for the analog rotator when scale started on other positions than  0 and 180 degrees.

Version 4.17 HAM-edition:

  • fixed a temperatur.nu-bug.
  • The page Set  Relays been improved for visually disabled.

Version 4.15 HAM-edition:

  • It’s no longer possible to activate more than one relay at the time with HTTP-REST-commands if ” only one relay at the time” is activated.
  • Bugfix concerning auto reconnection the remote serial TCP-port if the connection where lost.

Version 4.11 HAM-edition:

  • Added the possibility to select the relays which should be included in the Array Switch ( in rotator control).
  • The free memory indicator on the System Info web page showed too little free memory.
  • Added support for antenna control using the Yaesu FT-817/847/897 radios.
  • Added support for “only one relay on simultaneously” in the phone Apps. (Requires updated Apps too)
  • The relays used to control antennas/rotator are now disabled on the manual control web page.
  • Better handling of web browser which send “TCP Reset” instead of a normal “TCP Close”. Could in some cases cause the Webswitch to reset. Still could cause pages to fail loading, either the whole page or partially, but a reload of the page often fixes that.
  • Misc web page changes and improvements.

Version 4.05 HAM edition:

  • Added connection status for 1-wire devices.
  • Fixed a bug which could cause the CW and CCW rotator buttons to not work if the setting “Scale start” was non-zero.
  • Improvements in the DNS and NTP functions to better handle ISPs which blocks the DNS and NTP ports.
  • Increased the number of rotator presets to 12(from 8). The presets are only displayed if they are programmed(=have names)
  • Added DNS and NTP status to the System Info page.
  • Added programmable Command timeout when controlling rotators.
  • Misc. fixes and improvements.

Version 4.02 HAM edition:

  • New feature which enables easy network setup in combination with Setup Manager(1.27 and newer)
  • Added “Last WD reset” info on the System Info page. Shows the last restart reason if the restart was on purpose.
  • Added “raw” mode to the remote serial port.
  • The min/max temperature reset button was missing.
  • Antenna control: Current frequency is updated more often.
  • Antenna control: The “Automatic control” buttons did not work or update correctly.

Version 4.00 HAM radio edition:

  • Support for rotator controller 1216L-5.
  • Added endpoint break when using the CW/CCW buttons.
  • The CW/CCW buttons can be removed from the interface.
  • Changed the rotator page so it should work on iPhone and Android devices.
  • Rotator presets without name are given a default name “Preset x”.
  •  Förbättringar och buggfixar för RFC2217 (remote serial port) klient- och serverfunktioner.
  • Lade till RFC2217-anslutningsstatusinformation på statussidan.
